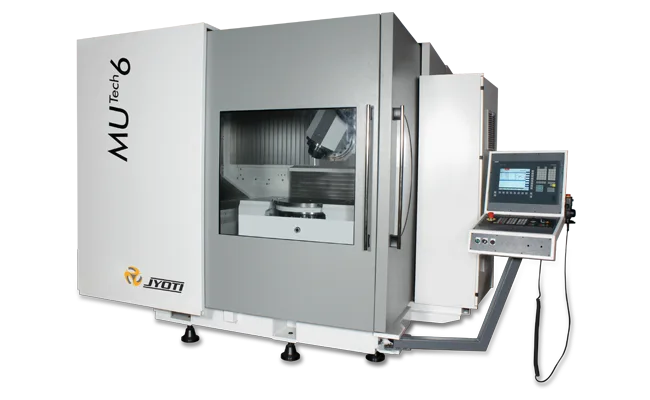

MuTech 6

MU Tech Series is an ideal choice for modern machine shop which offers versatile milling applications with high speed, power, geometrical accuracies and larger clamping surface. Large and complex 5-axis components can be easily operated in single set-up and in minimum cycle time. Symmetrical design of heavily ribbed cast iron structure leads to greater stability, excellent anti-damping and improved geometrical accuracies at the rapid of 30m/min. Tilting head on Y-axis with +30°/ -120° enabling machining on 5 sides. Fixed table with integrated rotary table, electro-spindle and twin arm type ATC makes machine more productive for intricated machining.
Key Features
  • Versatile high performance machine.
  • Heavy rigid and excellent anti-damping structure.
  • Geometrically stable machine.
  • Fixed table with integrated rotary table on Z-axis traverse.
  • 12000rpm electro-spindle
  • Swiveling Head (+30° / -120°).
  • 24 tool arm type faster ATC placed outside of working area.
  • Greater working envelope for large size component.
  • Electrical with quality device & panel AC.
  • Ergonomic design.
  • Wide door opening for better approach.
  • Auto & manual coolant.
  • Centralized & programmable lubrication.
  • Simultaneous 5-Axis Machine
    Simultaneous 5-Axis Machine
  • High Speed Electro Spindle
    High Speed Electro Spindle
  • TPM Friendliness
    TPM Friendliness
    MU Tech 6
Table (Fixed)
Table Size mm 1000 x 600
T-Slot Size mm 7 x 14 x 80
Max. Load on Table kg 700
Min.Distance from Floor to Table Top mm 900
Capacity
X-Axis Travel mm 750
Y-Axis Travel mm 560
Z-Axis Travel mm 560
Dist.from Pallet Top to Spindle Nose (Vertical) mm 100
Dist.from Pallet Top to Spindle Cen. (Horizontal) mm 300
Max.Job Dia.& height mm Ø 800 x 550
Feed & Acceleration
Rapid Traverse (X/Y/Z-axis) m/min 30
Acceleration (X/Y/Z -Axis) m/sec2 5
Cutting Feed m/min 10
Electro Spindle
Spindle Speed rpm 12000
Spindle Power kW 23.6
Spindle Torque Nm 110/84
Spindle Nose   SK40
Rotating Head (B-Axis)
Spindle Axis/Saddle Plane deg. +30/-120
Rotating Speed rpm 35
Acceleration rad/s2 40
Automatic Tool Changer
No.of Tool   24
Max.Tool Dia.(All/adj.empty) mm 75/125
Tool Weight kg 7
Tool Length mm 300
Accuracy
Positioning Accuracy mm 0.01
Repetability mm 0.005
Other
Weight # (Approx) kg 9300
Dimension # (Approx)
Length mm 4950
Width mm 2950
Height mm 2600
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
