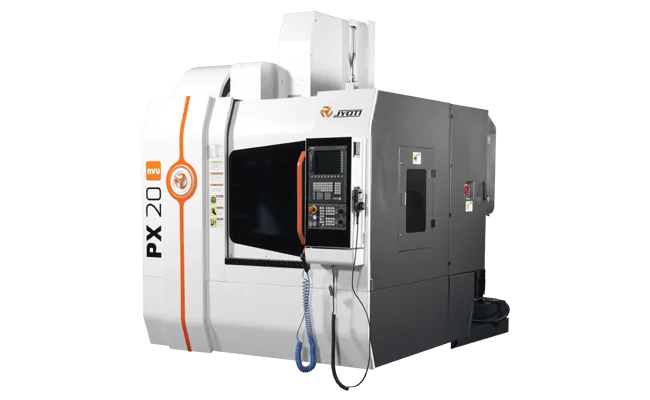

PX nvu Series
Varients:
PX 10 / 20 / 30 / 40
PX Series have been developed with the aim to deliver ability to cope up with various arenas of demanding for production type application of manufacturing industry. Graded cast iron heat treated C-frame structure provides consistent accuracy for long time and gives mechanical performance which maximizes structure rigidity. This series has been designed to be achieving better surface finishing, improved cycle time and process capabilities for various applications.
Key Features
- Broader base foot print and stiff column.
- Precision linear motion guideways.
- High Performance 6000rpm rigid BT-40 spindle.
- Twin arm type auto tool changer with 20 tool.
- 4th & 5th axis machining by using rotary table.
- Wide working area.
- Electrical with quality device and panel A.C.
- Auto and manual coolant.
- Rear side efficient chip flow.
- TPM friendly design.
- Centralized and programmable lubrication.
-
3 Point Leveling -
TPM Friendliness
| PX 10 nvu | PX 20 nvu | PX 30 nvu | PX 40 nvu | ||
| Table | |||||
| Table Size | mm | 660 x 360 | 660 x 460 | 915 x 360 | 915 x 460 |
| T-Slot Dimention | mm | 3 x 14 x 125 | 3 x 14 x 125 | 3 x 14 x 125 | 3 x 14 x 125 |
| Distance from Floor to Table | mm | 1050 | 1050 | 1050 | 1050 |
| Max. Load on Table | kgf | 400 | 400 | 500 | 500 |
| Capacity | |||||
| X-Axis Travel | mm | 510 | 510 | 760 | 760 |
| Y-Axis Travel | mm | 410 | 510 | 410 | 510 |
| Z-Axis Travel | mm | 510 | 510 | 510 | 510 |
| Dis. From Spindle Face to Table Top (Min.-Max.) | mm | 100-610 | 100-610 | 100-610 | 100-610 |
| Feed | |||||
| Rapid Traverse (X,Y & Z Axis) | m/min | 40/40/32 | 40/40/32 | 40/40/32 | 40/40/32 |
| Cutting Feed | m/min | 10 | 10 | 10 | 10 |
| Main Spindle | |||||
| Spindle Speed Range (with 1:1.2 Pulley Ratio) | rpm | 0-6000 | 0-6000 | 0-6000 | 0-6000 |
| Spindle Motor Power -Fanuc | kW | 7.5/5.5 | 7.5/5.5 | 7.5/5.5 | 7.5/5.5 |
| Spindle Motor Power -Siemens | kW | 7.2/5.5 | 7.2/5.5 | 7.2/5.5 | 7.2/5.5 |
| Front Bearing Bore | mm | 70 | 70 | 70 | 70 |
| Spindle Nose | BT-40 | BT-40 | BT-40 | BT-40 | |
| Automatic Tool Changer | |||||
| Number of Tool | 20 | 20 | 20 | 20 | |
| Max. Tool Dia. Pockets (All/Adj. empty) | mm | 80/125 | 80/125 | 80/125 | 80/125 |
| Max.Tool Weight | kg | 7 | 7 | 7 | 7 |
| Max.Tool Length | mm | 250 | 250 | 250 | 250 |
| Accuracy (As per VDI/DGQ 3441) | |||||
| Positioning Uncertainty (P) | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| Repeatability (Ps medium) | mm | 0.005 | 0.005 | 0.005 | 0.005 |
| Other Data | |||||
| Weight #(Approx.) | Kg | 4000 | 4050 | 4250 | 4300 |
| Dimension #(Approx.) | |||||
| Length | mm | 3410 | 3410 | 3410 | 3410 |
| Width | mm | 2120 | 2120 | 2770 | 2770 |
| Height | mm | 2810 | 2810 | 2810 | 2810 |
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
