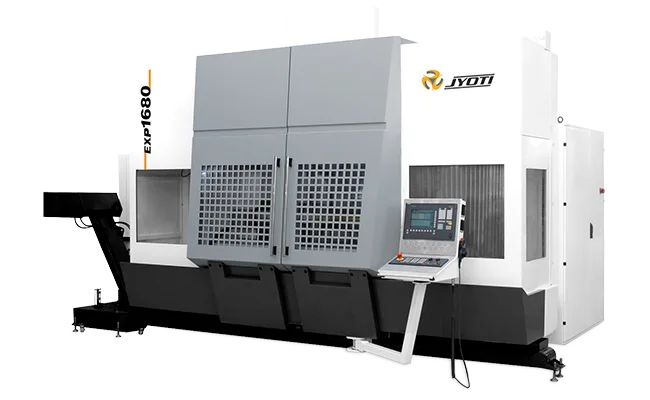

EX-F Series

The Series matches demand of the performance and versatility for manufacturing of smaller complex shapes to larger heavy components manufacturing for aviation and allied sector. Modular, rigid & thermally stable architecture of large part machining for roughing to finishing operations. Options to choose for spindle and table arrangement provides wide range penetration for component manufacturing with high speed and heavy material removal rate. Applications like mould machining, blade machining, heavy geared shaft, heavy gear, large housing and intricated profiles are best suited with the series.
Key Features
  • Moving column structure.
  • Very high speed machine with high material removal rates.
  • Higher load carrying capacity of stationary table.
  • High precision 8000rpm, BT-40 spindle.
  • 20 tool fast ATC kept outside of working area.
  • Wider roller type liner motion guide ways.
  • Very large accessibility from the top.
  • Electrical with quality device & panel AC.
  • Auto & manual coolant.
  • Centralized & programmable lubrication.
  • High Speed Machining
    High Speed Machining
  • Monoblock Structure
    Monoblock Structure
  • TPM Friendliness
    TPM Friendliness
  EX-F 1280EX-F 1680EX-F 2480
Table Sizemm1600 x 8002000 x 8002800 x 800
T-Slot Dimentionmm7 x 18 x 1007 x 18 x 1007 x 18 x 100
Distance from Floor to Tablemm100010001000
Max. Load on Tablekgf250035004500
X-Axis Travelmm120016002400
Y-Axis Travelmm800800800
Z-Axis Travel mm800800800
Dis. From Spindle Face to Table Top (Min.-Max.)mm150-950150-950150-950
Rapid Traverse (X,Y & Z Axis)m/min303030
Cutting Feedm/min101010
Main Spindle
Spindle Speed Rangerpm800080008000
Spindle Motor Power - FanuckW15/1115/1115/11
Spindle Motor Power - SiemenskW16.5/1116.5/1116.5/11
Front Bearing Boremm707070
Spindle Nose BT 40BT 40BT 40
Automatic Tool Changer
Number of Tool 202020
Max. Tool Dia. Pockets (All/Adj. empty)mm80/12580/12580/125
Max.Tool Weight kg777
Max.Tool Lengthmm250250250
Accuracy (As per VDI/DGQ 3441)
Positioning Uncertainty (P)mm0.020.020.02
Repeatability (Ps medium)mm0.0080.0080.008
With Glass Scale
Positioning Uncertainty (P)mm0.010.010.01
Repeatability (Ps medium)mm0.0050.0050.005
Other Data
Weight # (Approx.)Kg170001800021000
Machine Dimension # (Approx)
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
