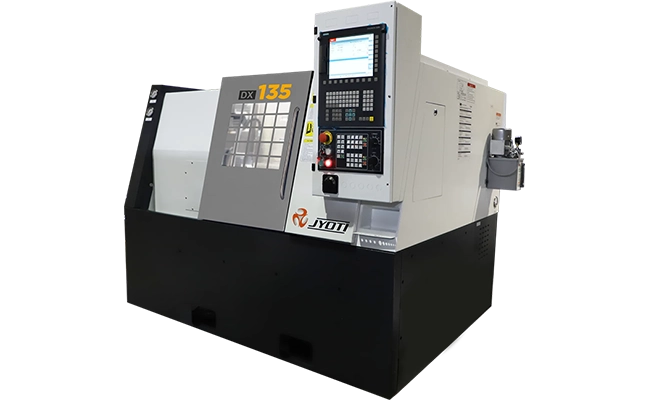

DX 135
Variants:
DX 135
For revolutionary and competitive market DX 135 serves a platform to perform greater on high productivity and superior surface finish as it has derived from continuous development and innovation since Jyoti has begun to CNC machine tool manufacturing. The series is most demanding due to its rigid step-up structure and construction with versatile application which covers optimum dimension ranges of workpiece.
Key Features
- Rigid bed and single piece 30° slant saddle construction.
- Rigid headstock & Heavy duty spindle.
- High precision L.M. guide ways.
- Bi-directional high speed servo turret.
- Fast tool changing time just 0.5 sec.
- Efficient chip disposal.
- Tail stock with hydraulic quill.
- Hydraulic chucking.
- Auto and manual coolant system.
- Electrical with quality devices & panel with A.C.
- Centralized & programmable lubrication.
Step-up Structure- 3-point Leveling
- Bi-directional servo turret
- TPM Friendliness
| DX 135 | ||
| Capacity | ||
| Swing Over Bed | mm | 400 |
| Std. Turning Dia. | mm | 170 |
| Max. Turning Dia.* | mm | 220 |
| Maximum Turning Length * | mm | 240 |
| Slides | ||
| X-Axis Travel (Cross) | mm | 120 |
| Z-Axis Travel (Longitudinal) | mm | 240 |
| Rapid Feed (X & Z axis) | m/min | 24 |
| Main Spindle | ||
| Spindle Motor Power - Siemens | kW | 4.8 / 3.7 |
| Spindle Motor Power - Fanuc | kW | 5.5 / 3.7 |
| Spindle Speed Range | rpm | 50-6000 |
| Spindle Bore | mm | 39 |
| Spindle Nose | A2-4 | |
| Max. Bar Capacity | mm | 30 |
| Turret | ||
| Number of Station | 8 | |
| Max. Boring Bar Dia. | mm | 32 |
| Tool Size (Cross Sectional) | mm | 20 x 20 |
| Tail Stock | ||
| Quill Dia. | mm | 75 |
| Quill Stroke | mm | 100 |
| Thrust | kgf | 300 |
| Accuracy (As per VDI/DGQ 3441) | ||
| Positioning Uncertainty (P) | mm | 0.007 |
| Repeatability (Ps medium) | mm | 0.005 |
| Other Data | ||
| Machine Weight (Approx.) | kg | 2400 |
| Machine Dimension (Approx.) | ||
| Length | mm | 1920 |
| Width | mm | 1500 |
| Height | mm | 1700 |
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
