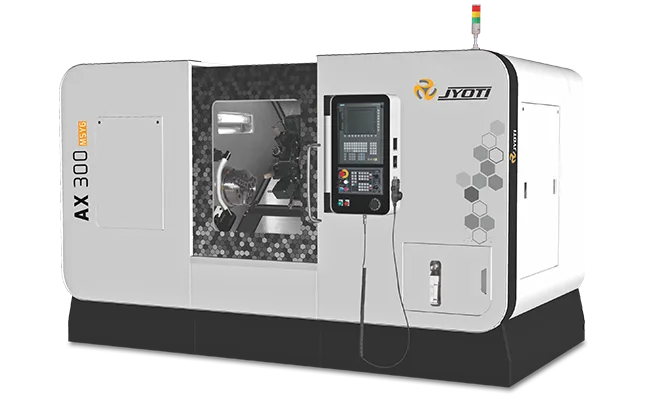

AX Series
Varients:
AX 200-M / MY / MSY, AX 300-M / MY/MSY
AX series can deliver higher level of accuracy and precision for sophisticated machining of bar, shaft and chucking components for automotive, instruments, hydraulic or electronics industries, aerospace industries etc. The frame size with different variants make them unique. Tailormade solutions made possible to meet varying demand of market. Multitasking made possible with combination of two electro-spindle and live tool turret with Y-Axis. Single piece slat bed rigid structure takes minimum floor space requirement and reduces effect of vibration and increases machined surface quality, provides excellent precision, stability and accuracy even for hard part turning.
Key Features
- Unique single piece slant bed construction.
- 12-station live tool turret with independent Y axis.
- High speed electro spindle with C-axis and rigid headstock.
- Secondary spindle available.
- High rapid rates upto 35 m/min with higher acceleration
- Directly Coupled and precision linear axis.
- Ergonomic designed, improved operating condition and aesthetic look.
- Hydraulic chucking.
- Efficient chip flow and easy chip handling.
- Auto and manual coolant system.
- Electrical with quality devices & panel with A.C.
- Centralized & programmable lubrication.
Monoblock Rigid Structure- Electro-spindle
- TPM Concept
| AX 200 | AX 200M | AX 200MY | AX 200MSY | AX 300 | AX 300M | AX 300MY | AX 300MSY | ||
| Capacity | |||||||||
| Swing Over Bed | mm | 550 | 550 | 550 | 550 | 650 | 650 | 650 | 650 |
| Std. Turning Dia. | mm | 370 | 330 | 330 | 330 | 465 | 420 | 420 | 420 |
| Max. Turning Dia.* | mm | 370 | 330 | 330 | 330 | 480 | 420 | 420 | 420 |
| Maximum Turning Length * | mm | 325/625 | 325/625 | 325/625 | 625 | 600/1200 | 600/1200 | 600/1200 | 600 |
| Chuck Dia. | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 |
| Slides | |||||||||
| X-Axis Travel | mm | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 |
| Y-Axis Travel | mm | NA | NA | ±40 | ±40 | NA | NA | ±50 | ±50 |
| Z-Axis Travel | mm | 325/625 | 325/625 | 325/625 | 625 | 625/1225 | 625/1225 | 625/1225 | 625 |
| Rapid Feed (X,Y & Z- axis) | m/min | 24/NA/30 | 24/NA/30 | 24/24/30 | 24/24/30 | 24/NA/30 | 24/NA/30 | 24/24/30 | 24/24/30 |
| Main Spindle (Motorised) | |||||||||
| Spindle Motor Power (Cont)Siemens- Fanuc | kW | 9.15 | 9.15 | 9.15 | 9.15 | 20 | 20 | 20 | 20 |
| Spindle Speed Range | rpm | 4500 | 4500 | 4500 | 4500 | 4000 | 4000 | 4000 | 4000 |
| Spindle Nose | A26 | A26 | A26 | A26 | A28 | A28 | A28 | A28 | |
| Max. Bar Capacity | mm | 52 | 52 | 52 | 52 | 65 | 65 | 65 | 65 |
| Sub-Spindle (Motorised) | |||||||||
| Spindle Motor Power (Cont)Siemens- Fanuc | kW | NA | NA | NA | 7.5 | NA | NA | NA | 9.15 |
| Spindle Speed Range | rpm | NA | NA | NA | 5000 | NA | NA | NA | 4500 |
| Spindle Nose | NA | NA | NA | A25 | NA | NA | NA | A26 | |
| Spindle Travel | mm | NA | NA | NA | 630 | NA | NA | NA | 620 |
| Turret | |||||||||
| Turret Type | Servo | Live | Live | Live | Servo | Live | Live | Live | |
| Number of Station | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| Max. Boring Bar Dia. | mm | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 |
| Tool Size (Cross Sectional) | mm | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 | 25 x 25 |
| Live Tool Power (Siemens/Fanuc) | kW | NA | 4.8/4.5 | 4.8/4.5 | 4.8/4.5 | NA | 4.8/5.5 | 4.8/5.5 | 4.8/5.5 |
| Live Tool Speed (Siemens) | rpm | NA | 4500 | 4500 | 4500 | NA | 4500 | 4500 | 4500 |
| Live Tool Speed (Fanuc) | rpm | NA | 4500 | 4500 | 4500 | NA | 3000 | 3000 | 3000 |
| Live Tool Type | NA | VDI30/BMT45 | VDI30/BMT45 | VDI30/BMT45 | NA | VDI40/BMT55 | VDI40/BMT55 | VDI40/BMT55 | |
| Tail Stock | |||||||||
| Tailstock Type | Digital | Digital | Digital | NA | Digital | Digital | Digital | NA | |
| Tailstock Travel | mm | 330/630 | 330/630 | 330/630 | NA | 620/1220 | 620/1220 | 620/1220 | NA |
| Live Quill Taper | MT-5 | MT-5 | MT-5 | NA | MT-5 | MT-5 | MT-5 | NA | |
| Quill Dia. | mm | 130 | 130 | 130 | NA | 130 | 130 | 130 | NA |
| Thrust | kgf | 350 | 350 | 350 | NA | 500 | 500 | 500 | NA |
| Accuracy (As per VDI/DGQ 3441) | |||||||||
| Positioning Uncertainty (P) | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Repeatability (Ps medium) | mm | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 |
| Machine Weight # (Approx.) | kg | 4100/4500 | 4200/4600 | 4400/4800 | 5000 | 6300/6900 | 6500/7100 | 6500/7100 | 6700 |
| Machine Dimension # (Approx.) | |||||||||
| Length | mm | 2610/2910 | 2610/2910 | 2610/2910 | 3220 | 3490/4090 | 3490/4090 | 3490/4090 | 3490 |
| Width | mm | 1735 | 1735 | 1735 | 1735 | 2000 | 2000 | 2000 | 2000 |
| Height | mm | 1960 | 1960 | 1960 | 1960 | 2205 | 2205 | 2205 | 2205 |
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
